您现在的位置：首页 - 产品展示 - 全自动厨房擦手纸机系列

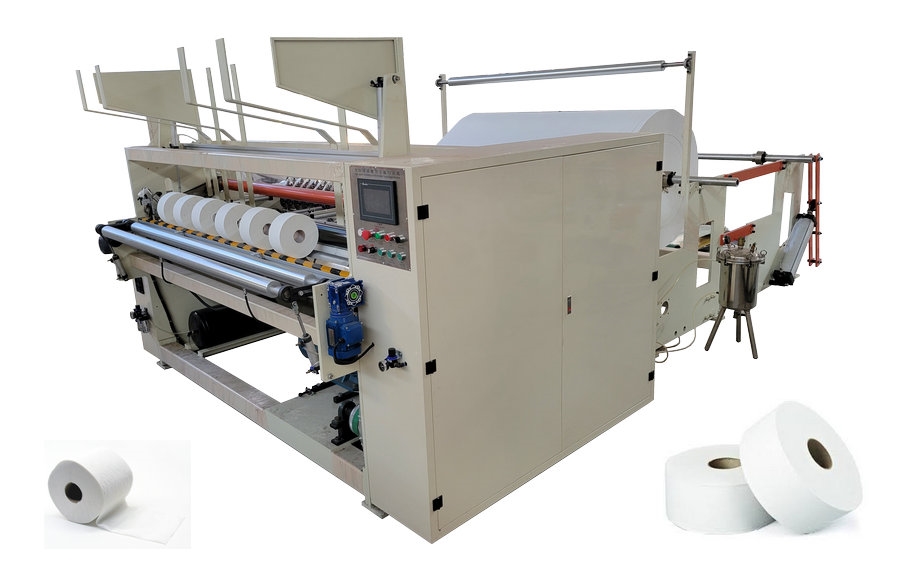

全自动厨房擦手纸机系列

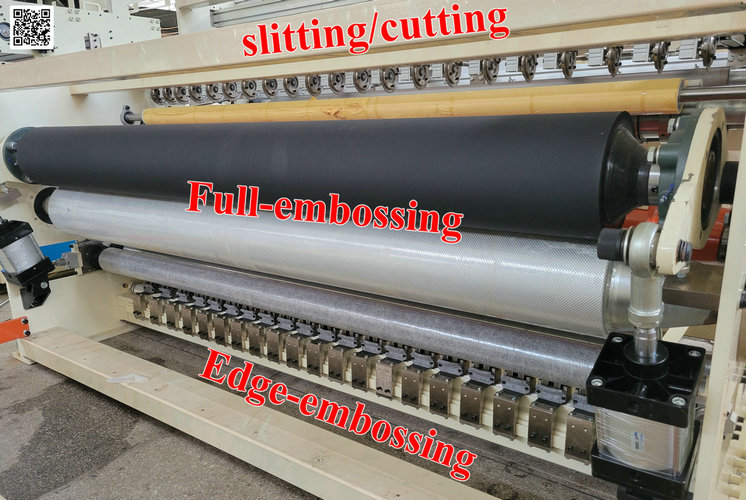

该设备可加工1.2m-3.2m宽的原纸。有两种生产型号，具有切割功能的机器，可以生产普通的卫生纸和小筒子。生产效率高。本机由原料支架、纸张输送单元、压花单元、穿孔单元、切割单元、滚动单元、电力控制和修整喷雾系统组成。生产过程是：取消-→压花-→穿孔-→切割-→furl-→修剪喷雾
-
如果您需要此产品，请填写下来，我们会迅速与您联系。
|
Model |
1092D |
1575D |
2000D |
2200D |
2400D |
2600D |
2800D |
3000D |
3200D |
|
Width of raw material |
1200 |
1800 |
2000 |
2200 |
2400 |
2600 |
2750 |
2950 |
3150 |
|
Dia. of finished product |
¢80-300mm(the tension is adjustable) |
||||||||
|
Dia. of finished paper core |
Toilet paper：¢30-50，small bobbin¢76（other specification please specify0 |
||||||||
|
Dia.of raw material |
1200mm(can accept customers’requirement) |
||||||||
|
Dia of core of raw material |
¢76.2mm |
||||||||
|
Perforation distance |
4 knives 90-120-240mm (other specifications, please point ) |
||||||||
|
Reeling speed |
150-250m/min |
||||||||
|
Slitting knife number |
19 pcs（1575 for example） |
||||||||
|
Parameter setting |
Touch screen man-computer interface operation system |
||||||||
|
PLC |
PLC |
||||||||
|
Raw material holder |
2 layers(3layer, please order) |
||||||||
|
Pneumatic system |
Pressure5kg/cm2pa(prepared by customers) |
||||||||
|
Power |
5.5-15kw |
||||||||
|
Overall Dimension (LXWXH) |
6100X2650X1800-6100X4050X1800mm |
||||||||
|
Weight |
3.5-7T |
||||||||
|
Embossment |
Single embossment, two side embossment and steel to steel embossing(depend on selection) |
||||||||
|
Embossment bottom roller |
Felt roller, wool roller and rubber roller (depend on selection) |
||||||||
